Bench Mounted Readers

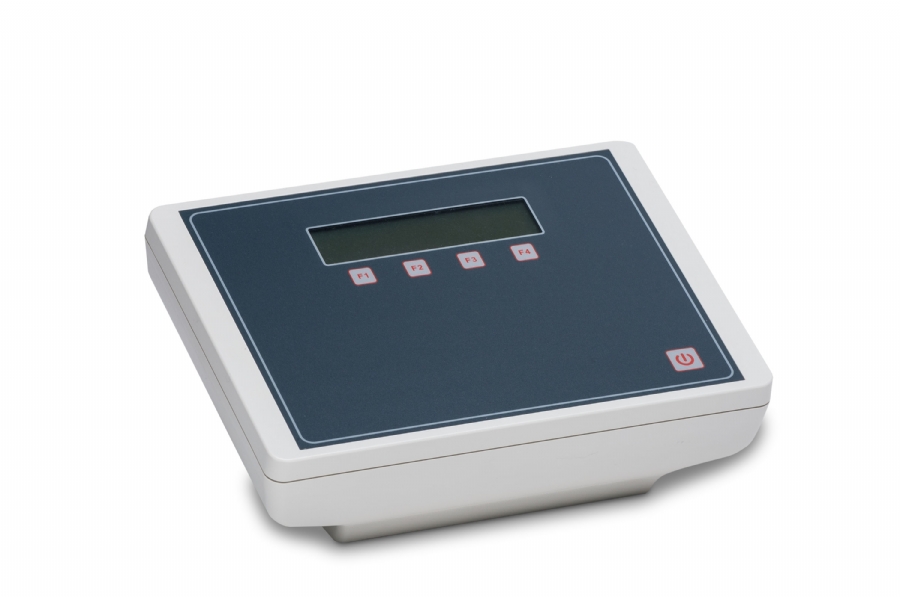

LID1265 RFID Reader

The LID1265 desktop reader can be used in applications that require a large reading distance and clear visual indication of the tag number.  The instrument comes with a downloadable software package (see our support section) which is Windows compatible. A large 2 line LC Display is integrated and it is possible to assign custom names to the ID numbers via the accompanying software.  The LCD has a backlight ensuring improved clarity of display. Connection is via a RS232 communication port with the option of a USB interface. The unit can be used with either 110 or 220 volt power supply with the required adaptors.

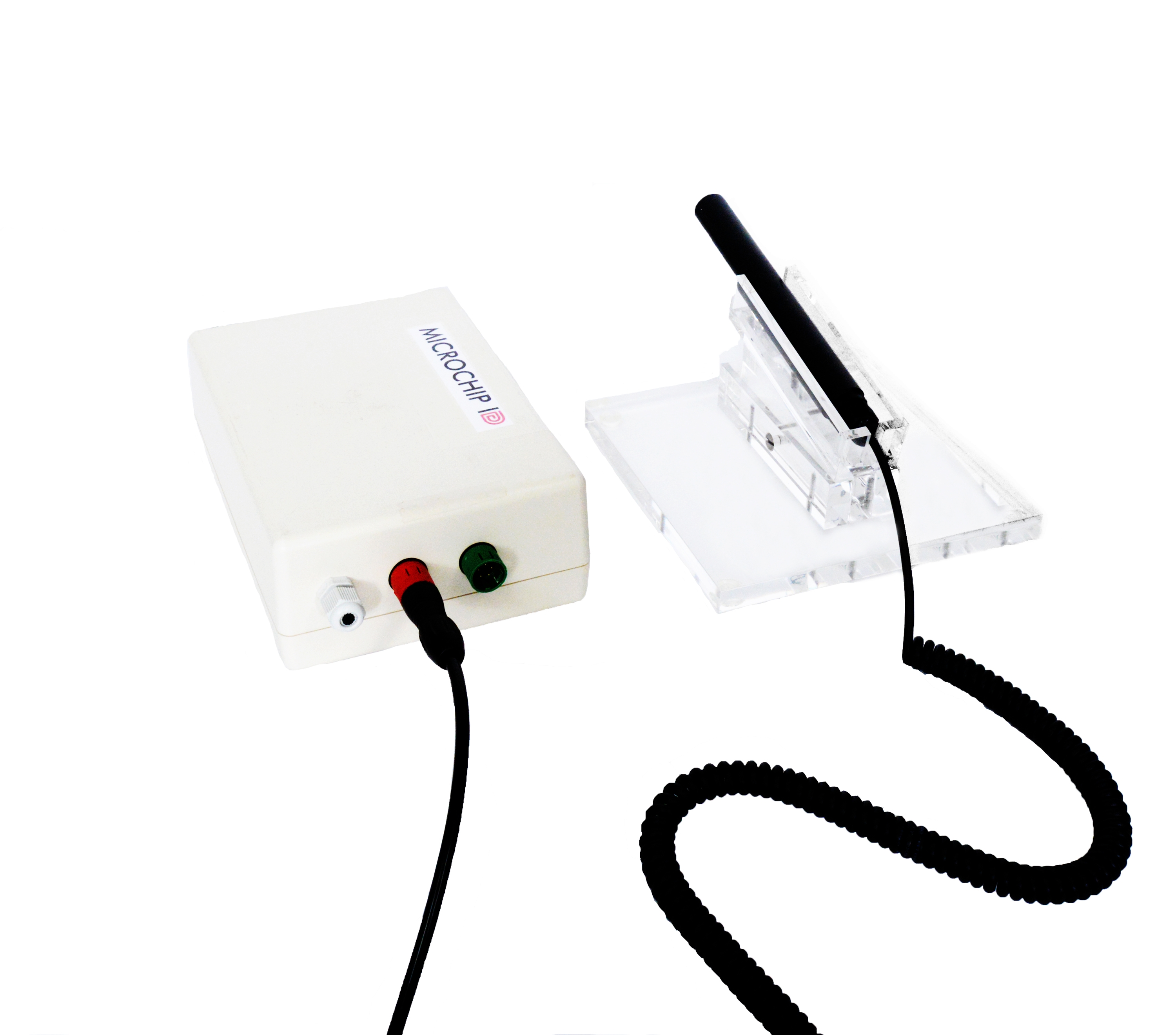

The reader can be used with several Trovan single and triple coil antennae, including the bench mounted ANT 610, or lance type antennae which are fitted with coil cables for extensive reach capability. The image below shows the LID 1265 coupled to an ANT 611 fitted with a coiled cable. Stands and holders are available for all antennae.

RS232 communication port.
USB interface.
Multi coil antenna connector.
12V DC connection.
110 or 220 VAC power supply adapters can be used.
Internal relay available to generate additional audio or visible indication.

Transponder Type Max. Reading Distance*
ID100US  17cm
ID100BUS   11cm

*Maximum readings in noise free environment

Dimensions: Max. 225mm x200mm x120mm
Weight: ca. 1.1 kg
Protection: Upto IP54
Material: ABS

Colour according to RAL9002.
UL94-HB
RoHS compliant
