Portable Handheld RFID Readers

Microchip ID | Portable RFID Readers

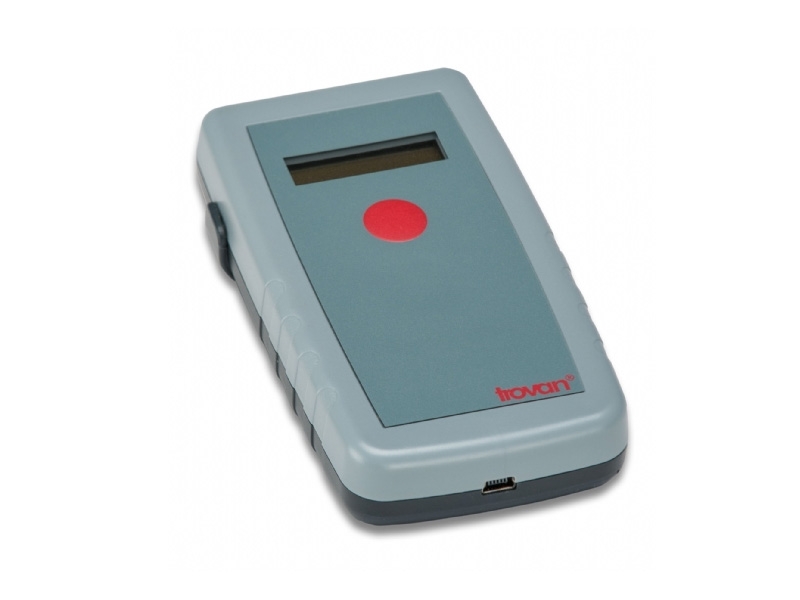

LID573S - Standard Handheld and LID573BLE Low Energy Bluetooth Reader

The LID573S is a hand held scanner uniquely designed to be used in conjunction with the ID100C and ID100B/1.4 Mini transponder. A USB port allows direct communication with a PC or laptop device. Optional Low Energy Bluetooth is also available with the LID573BLE model providing wireless readings up to a range of thirty feet. Large amounts of data can be transferred more rapidly due to the clock speed of the processor. Data searching and recovery is extremely rapid. The instrument comes with a downloadable software package (see our support section) which is Windows compatible.

Features and Benefits:

  • Smallest portable reader.
  • Store up to 5,370 ID codes.
  • Time and date stamp readings.
  • Mini n-USB interface.
  • Custom names feature (pick your own name for each ID number and display it on the LCD).
  • 2-line, 16-character p. line backlit LCD.
  • Detachable belt clip.
  • 9V battery (type PP3)
  • More than 3 hours continuous reading with alkaline type 600mAh
  • Typical read range: ID-100US up to 5 cm (1.9 in)
  • Dimensions: 70 mm x 125 mm x 24 mm (2.75 in. x 4.92 in. x 0.94)

Optional:

  • Low Energy Bluetooth Communication
  • Protection boot
  • Expandable memory to 1042 Kb
  • Rechargeable 9V/150mAh NiMH battery
  • Battery charger for 2ea 9V NiMH rechargeable batteries
Microchip ID | Portable RFID Readers

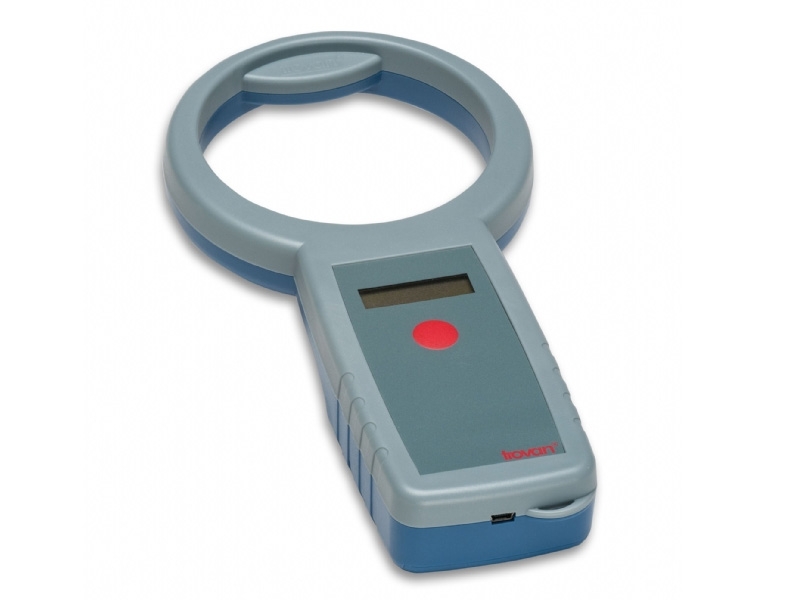

LID575S Hand Held Reader with Circular Antenna

The LID575S is a lightweight hand held scanner uniquely designed to be used in conjunction with the ID100C and ID100B/1.4 Mini transponder. The unique circular antenna provides a long read distance, and can facilitate “pass through” scanning. A USB port allows direct communication with a PC or laptop device. Large amounts of data can be transferred more rapidly and due to the clock speed of the processor, data searching and recovery is much faster. The instrument comes with a downloadable software package (see our support section) which is Windows compatible.

Features and Benefits:

  • Material : ABS. 2 Colors (Grey-Blue)
  • Connections : USB serial interface
  • Max. Dimensions : 238 x 120 x 35 mm
  • Weight : 300 Gram (including batteries)
  • Power supply : 4 x 1,5V AA batteries Alkaline/NiMH rechargeable
  • Current : ca. 500mA
  • Battery life : continuous reading more than 3 hours.
  • Foil : Grey, button integrated
  • LCD : 2 x 16 characters with backlight
  • Memory : Standard 256kBit EEPROM (expansion with 1024kBit possible)
  • Storage : Without date/time: 2010 codes min, 5370 codes max. (with memory expansion 5 times more)
  • Clock/Calendar : Yes
  • Operating temperature : 0 – 50 degrees Celsius
  • Typical read range: ID-100US up to 5 cm (1.9 in)

Optional:

  • Low Energy Bluetooth Communication
  • Carrying case
Microchip ID | Portable RFID Readers

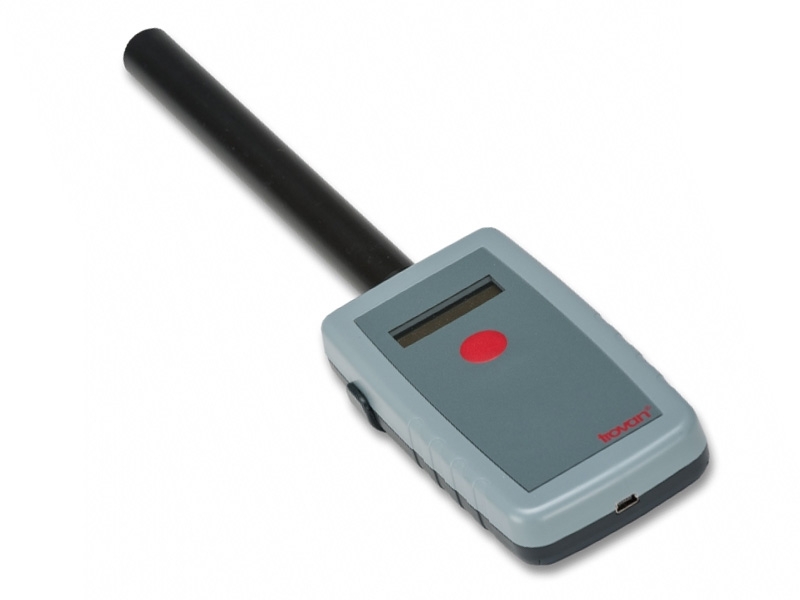

LID573EP Handheld Reader

The LID573EP have ostensibly the same features as the LID573BT except for the external probe attachment. The LID573EP is a hand held scanner uniquely designed to be used in conjunction with the ID100C and ID100B/1.4 Mini transponder. The LID573EP configuration, is equipped with USB and a Bluetooth module enabling wireless communication to a PC or laptop device. Large amounts of data can be transferred more rapidly and due to the clock speed of the processor, data searching and recovery is extremely fast. The instrument comes with a downloadable software package (see our support section) which is Windows compatible.

Features and Benefits:

  • Extended read range allowing improved cage access
  • External/Attached antenna fits through Primate cage bars
  • Robust design but also lightweight.
  • Expandable memory to 1042 Kb
  • LC-Display with backlight
  • Clock/calendar with lithium battery backup
  • Pocket/belt clip
  • Utilizes Standard 9V batteries
  • Typical read range: ID-100US up to 5 cm (1.9 in)

Optional :

  • Low Energy Bluetooth
  • Protection boot
  • Rechargeable 9V/150mAh NiMH battery
  • Battery charger for 2ea 9V NiMH rechargeable batteries
