Implantable Transponders

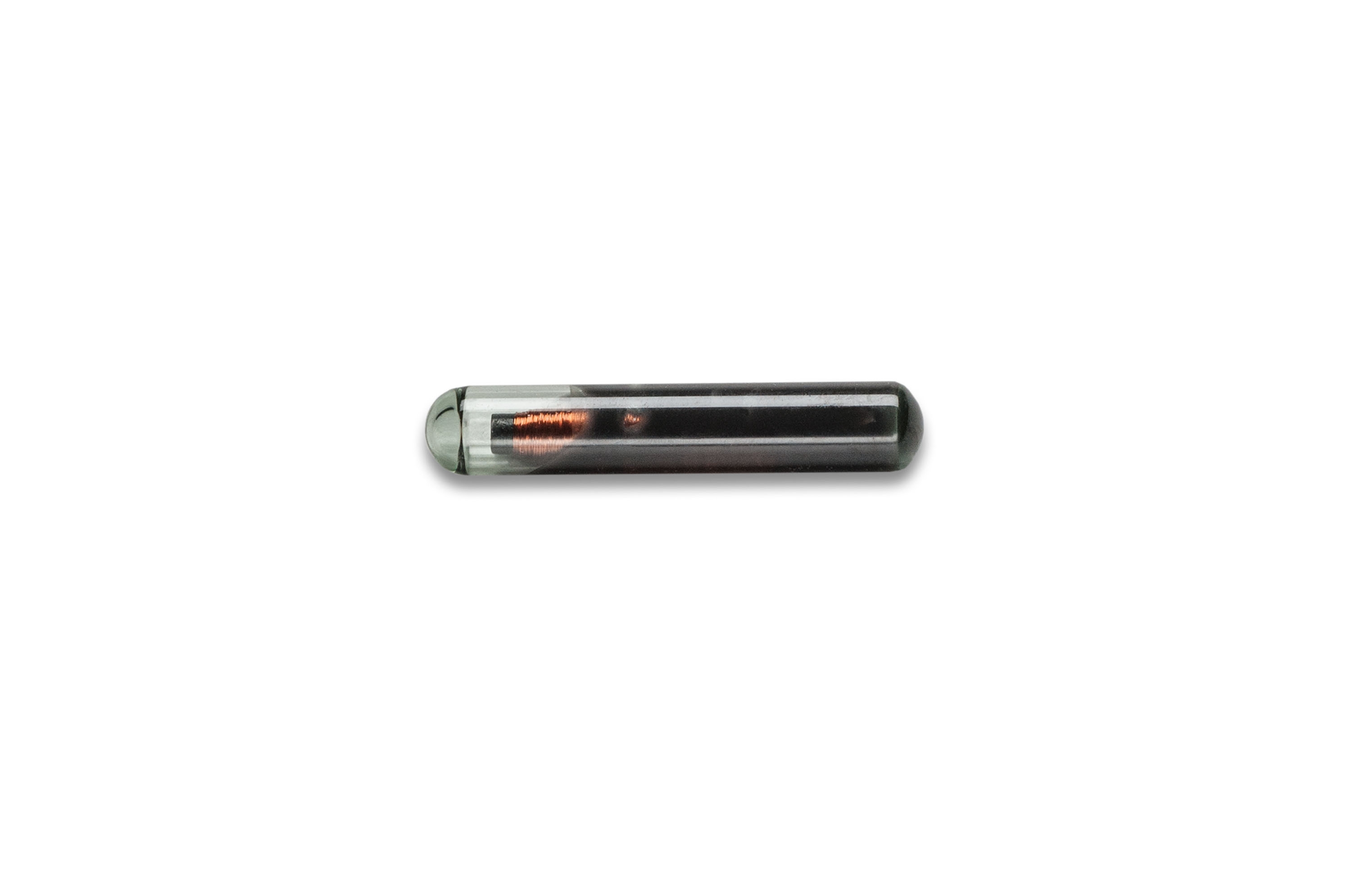

ID100C Read only Transponder

The ID100C Implantable Transponder with Lancet has been designed especially for use in animal identification. Each ID100C transponder is encapsulated in special, biocompatible destressed glass and is laser coded to improve long term component integrity. The transponder comes in a shortened (32mm) and thinner wall cannula allowing improved injection control with a sharper bevel to lessen pressure during injection. The cannula is fixed to the injection device using a luer lock mechanism ensuring a firm and stable interface when injecting the chip. The cannulas are individually pre-sterilized and supplied in bubble pack with individual bar codes. Each comes ready for application in its own disposable needle. All transponders remain active into extended post mortem periods for longer study record archiving.

MicrochipID | Products | RFID Implantable Transponders

Specification:
Dimensions: Length: 11.5mm (0.44 in.) / Diameter: 2.12mm (0.083 in.)
Weight: 0.09g
Identification Code: 64bit, factory pre-programmed
Encapsulation: Biocompatible glass
Operating Frequency: 128 kHzSpecification
Dimensions: Length: 11.5mm (0.44 in.) / Diameter: 2.12mm (0.083 in.)
Weight: 0.09g
Identification Code: 64bit, factory pre-programmed


ID100B/1.4 Mini Transponder

The ID100B/1.4 Mini Transponder is the smallest indelible transponder on the market and is designed to provide a low impact application where a small, unobtrusive ID tag is called for. In conjunction with the short thin walled delivery needle, the system is much less obtrusive, allowing improved control when injecting even the smallest species. Connecting the cannula to the injection device is achieved via a luer lock fitting ensuring a firm and stable interface when injecting the chip. This configuration is also suitable for large scale animal applications requiring the smallest transponders.

The transponder is encapsulated in special, biocompatible glass, individually pre-sterilized and packaged in a bubble pack. It comes ready for application, in its own disposable needle and with 6 each adhesive labels featuring the ID code in human readable (alpha-numeric) and barcode 39 format.  Each ID100B/1.4 Mini’s code uniqueness is protected by patent.

MicrochipID | Products | RFID Implantable Transponders

Specification:

Transponder Dimensions: Length: 8.2 ± 0.03mm (0.32 in.) / Diameter :1.4 ± 0.10mm (0.06 in.)
Weight: 30 ± 6 mg
Identification Code: 64 bits, factory pre-programmed
Encapsulation: Biocompatible glass
Needle Dimension: Length: 32mm (1.26 in.) / Outside Diameter: 2 mm (0.08 in.) / Thin Walled

ID100A Read only Transponder

The ID100A is the Trovan transponder without the delivery system that the ID100US gives you. Can be and has been used in Fish research, where insertion of the tag is done with the use of a scalpel.

MicrochipID | Products | RFID Implantable Transponders

Specification
Dimensions: Length: 11.5mm (0.44 in.) / Diameter: 2.12mm (0.083 in.)
Weight: 0.09g
Identification Code: 64bit, factory pre-programmed
Encapsulation: Biocompatible glass
Operating Frequency: 128 kHz

ID100US Read only Transponder

The ID100US Implantable Transponder with Lancet features the innovative lancet and implant gauge, which has been designed especially for use in animal identification. Each ID100US transponder is encapsulated in special, biocompatible destressed glass and is laser coded to improve long term component integrity. They are individually pre-sterilized and supplied in bubble pack with individual bar codes. Each comes ready for application in its own disposable needle. All transponders remain active into extended post mortem periods for longer study record archiving.

MicrochipID | Products | RFID Implantable Transponders

Specification
Pre-sterilised, individually packaged. Innovative lancet design. Biocompatible destressed glass encapsulation.

Transponder Dimensions: Length: 11.5mm (0.44 in.) / Diameter: 2.12mm (0.083 in.)
Lancet Dimensions: Length: 55.5mm (2.2 in.) / Outside Diameter: 2.6mm (0.1 in.)
Weight: 0.09g
Identification Code: 64bit, factory pre-programmed
Encapsulation: Biocompatible glass
Operating Frequency: 128 kHz
